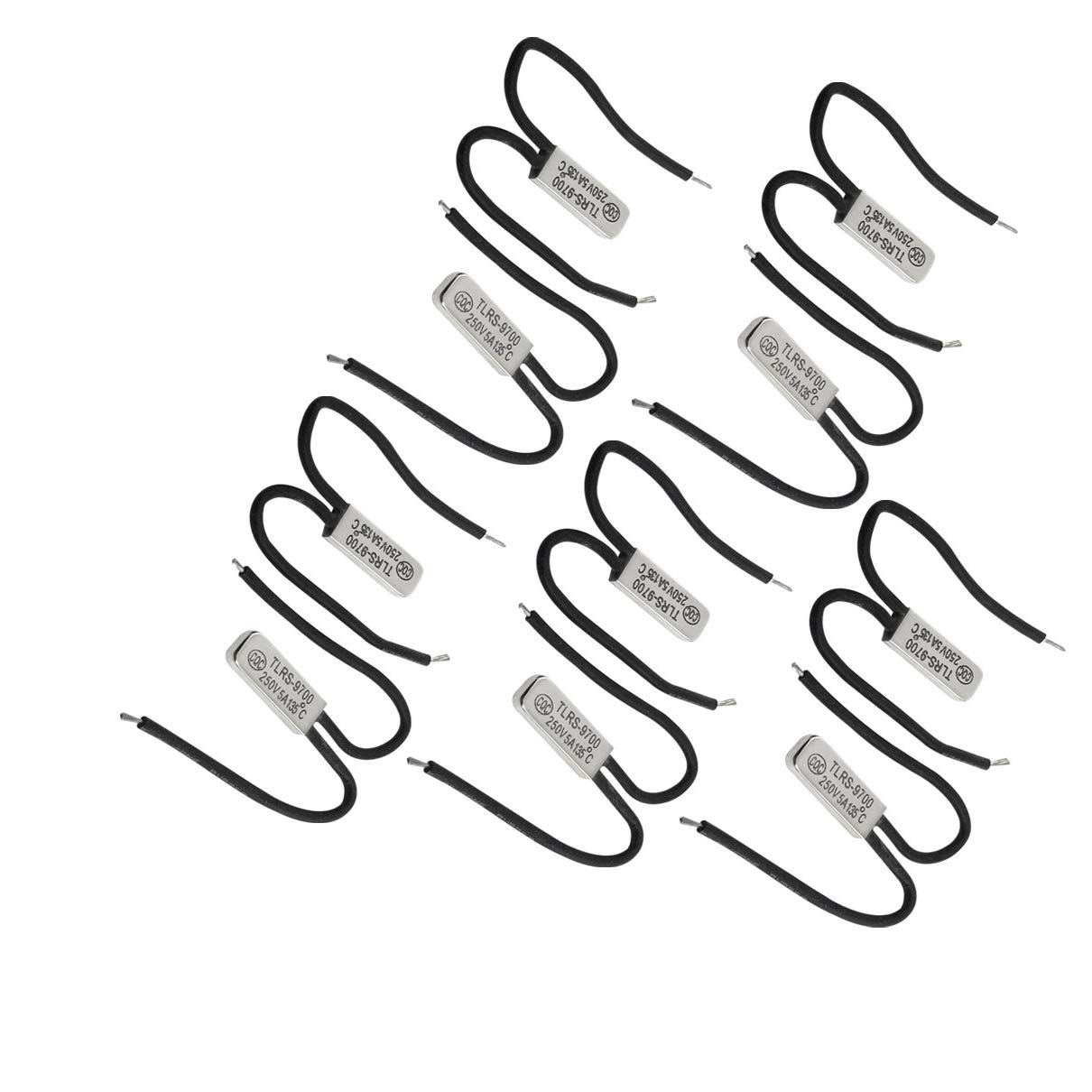

10 Pcs 135°C N.C Bimetal Temperature Switch Thermostats - 250V 5A Thermal Protector Accessories for Appliances, HVAC & Industrial Equipment

Specifications:Description:KSD9700 product is a kind of thermostat which adopt the bimetal head as the temperature sensing . The bimetal head is in free state and the contacts are closed when the electrical appliance is working in normal condition.When the ambient temperature raises to the preset operating temperature, the contacts close as the plastic head deforms to jump when being heated, then the circuit is cut off to control the temperature .Then the contacts will close automatically to cut on the circuit when the electrical appliance is cooled down to the reset temperature.Widly used in home appliance motor and electrical equipment, such as air conditioner motor, transformer, thermal appliances, etc.

Product Name Temperature Control Switch;Model.No KSD9700;Material Plastic, Bimetal

Contact NC(Normal Close);Rated Voltage 250V;Current 5A

Max Rated Disconnection Temperature 135C;Color Silver Tone, Black

Cable Length 7cm/ 2.75";Head Dimension 20 x 7.4 x 3.6mm / 0.79" x 0.29" x 0.14"(L*W*T)

Net Weight 32g;Package Content 10 x Temperature Control Switch
